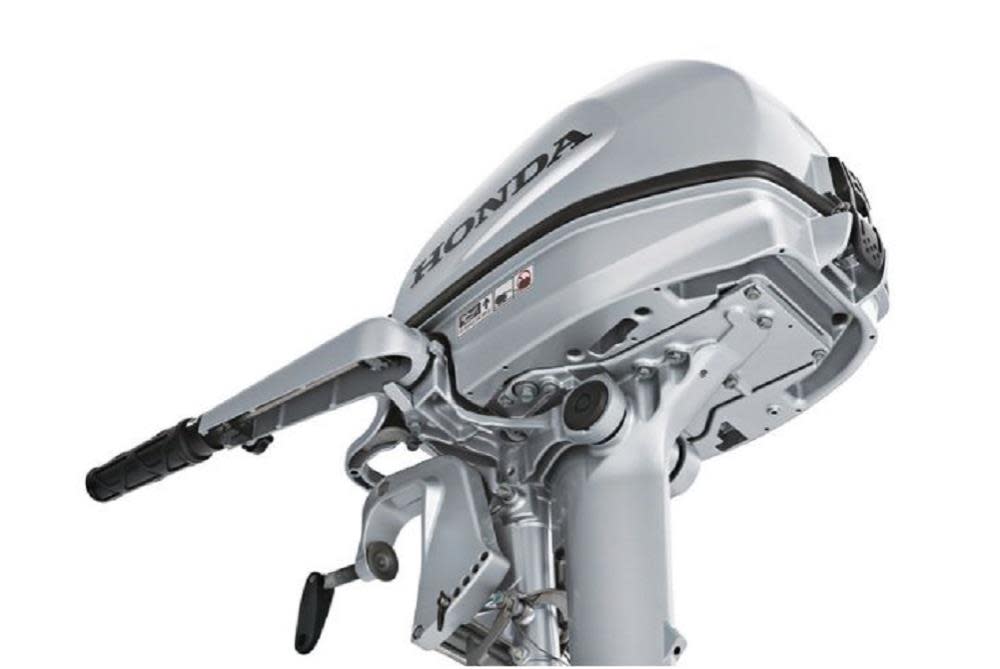

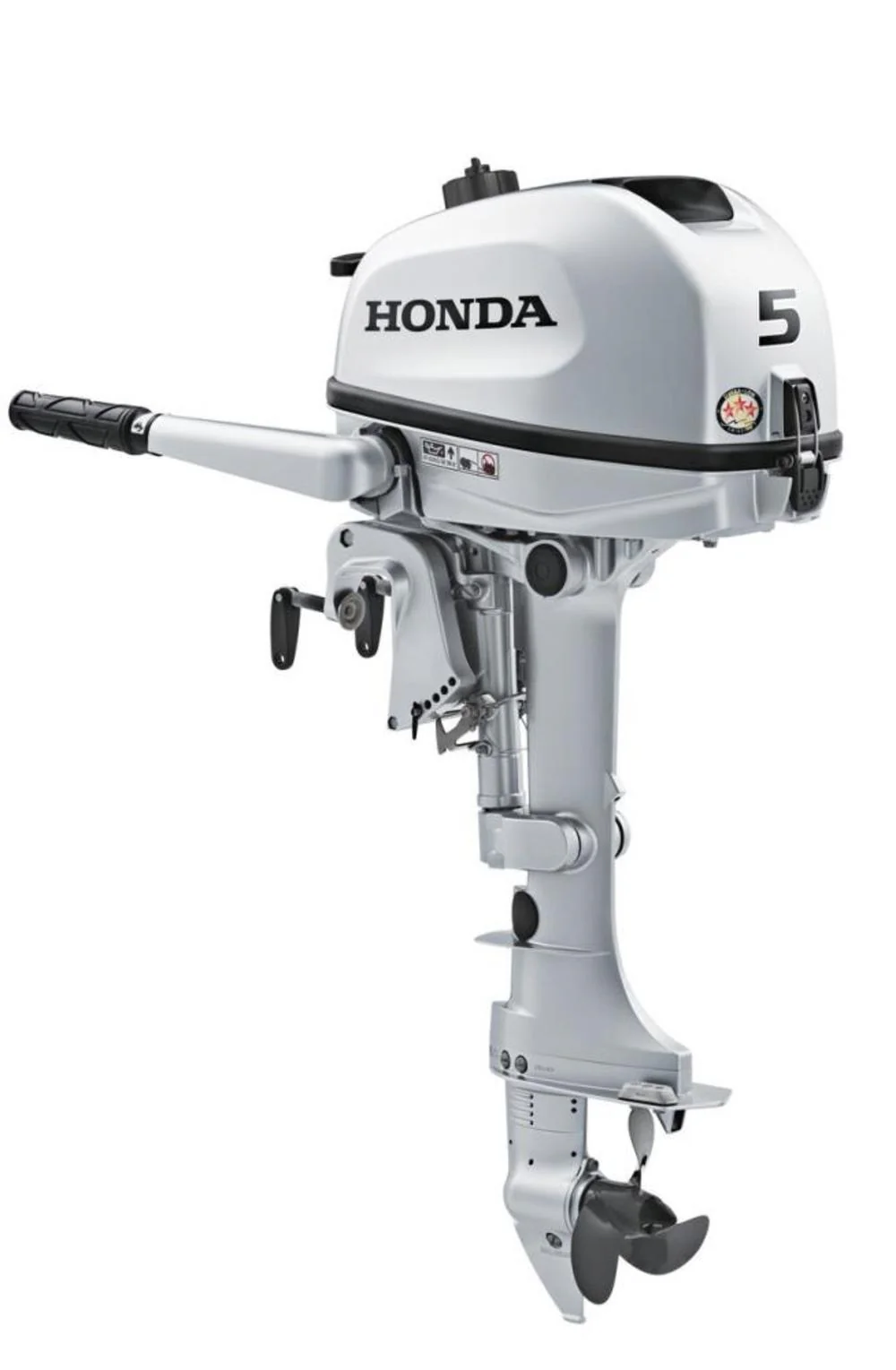

Honda Outboard Motor 5HP with Tiller Handle 20 Shaft
Everything you want in a portable outboard. Easy starting. Lightweight. Fuel efficient. Quiet . low vibration performance. It’s easy to see why the all new BF4 and the newly redesigned BF5 are best in class. Honda thought of everything. From comfortable carrying handles to a one touch stop switch to the longest run time in its class . this is a motor that redefines what a portable should be. Ideal for small tenders . canoes . jon boats . and inflatables . the BF4 and 5 are easy to transport and ready for fun.
Features
Reliable . efficient 4-stroke design
Lightweight and compact
Weighing in at only 60 pounds . these motors are easy to transport

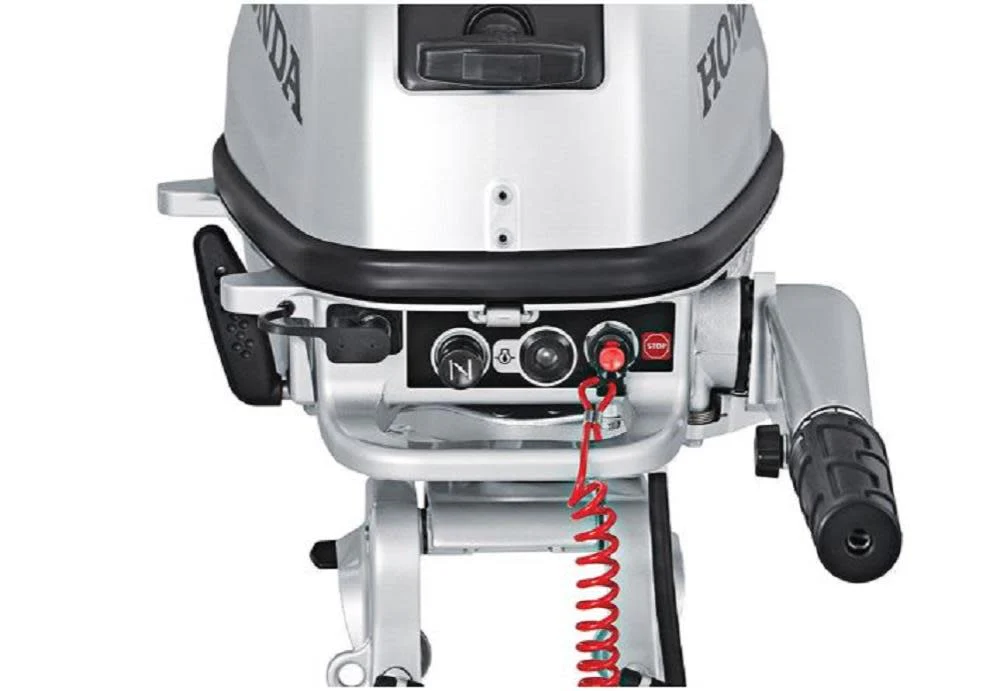

Easy to start and stop
Large capacity internal fuel tank for best in class run time
Quiet and smooth – low vibration for a comfortable ride

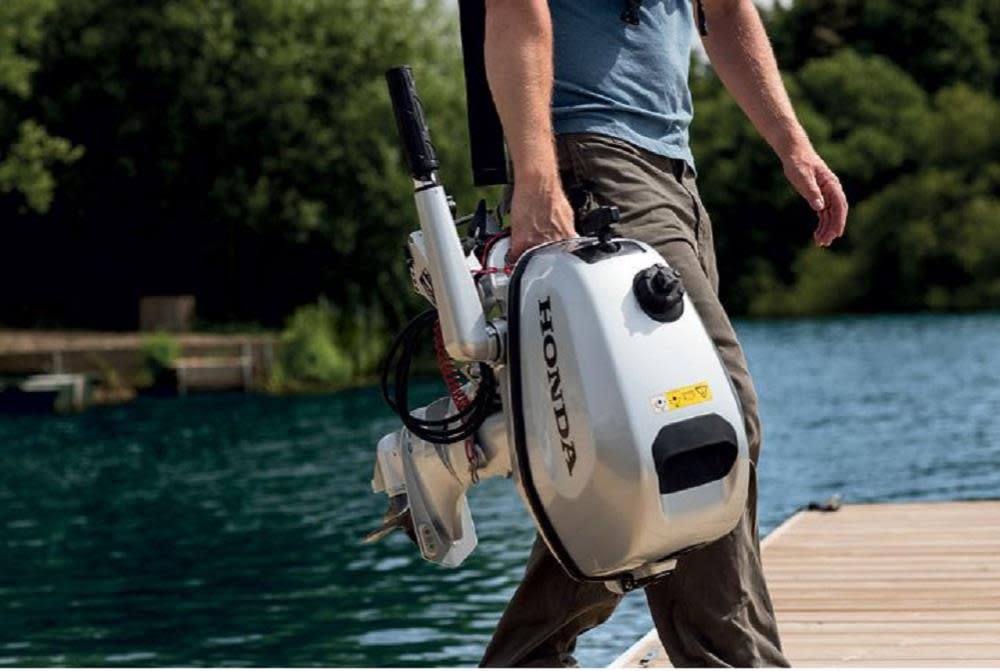

Easy to carry and install
Convenient fold-down tiller handle
Quietest in it’s class
Twist grip throttle – more comfortable to use
True 5 warranty – unmatched peace of mind
A low oil alert combined with an RPM reduction feature protect the engine from severe damage if the oil reaches a low pressure
4-Front corrosion protection system
An innovative shallow water drive feature lets you tilt the motor up . allowing you to easily operate in shallow areas
The BF4 and 5 feature full forward . neutral . and reverse shifting
A crankshaft-driven . automotive-style trochoid oil pump ensures long-term durability of critical engine components
Ultra low 3 star CARB emissions
Allows you to run in shallow water and greatly reduces the risk of engine damage
20 Shaft Model
3-Blade aluminum propeller
Specifications
Acme Tools Brand Name
HONDA MARINE
Acme Tools Part Number
BF5DHLHNA
Assembled Weight (lbs)
60
Bore Diameter (in)
2.4
California Proposition 65 Warning Required
Yes
Capacity
Fuel: 0.4 Gal
CARB Compliant
Yes
Color
Silver
Color / Finish
Silver . Grey and Black
Country of Origin
Japan
Cylinder Count
1
Dry Weight (lbs)
60
Engine Displacement (in³)
7.8
Engine Oil Capacity (qt)
0.48
Engine Starting Method
Recoil
Fuel Tank Capacity (gal)
0.4
Gear Ratio
2.08:1
globalTradeItemNumber (GTIN)
00786102006170
Horsepower (hp)
5
Installation Hardware Included
Yes
Installation Instructions Included
Yes
Internal Supplier Part #
BFDHLHNA
Internet Product Code (IPC)
A3A355CD4AB
Manufacturer Warranty
5 Year Limited Manufacturer Warranty. See Owner’s Manual for Details.
Model Year
2018
Overall Height (in)
45.7
Overall Length (in)
20.6
Overall Width (in)
13.7
Package Weight
75
Package Weight (lbs)
75
Recommended Use
Recommended Maximum Boat Length (ft)= 1
Shaft Length (in)
20
Stroke Length (in)
1.8
UPC
786102006170
